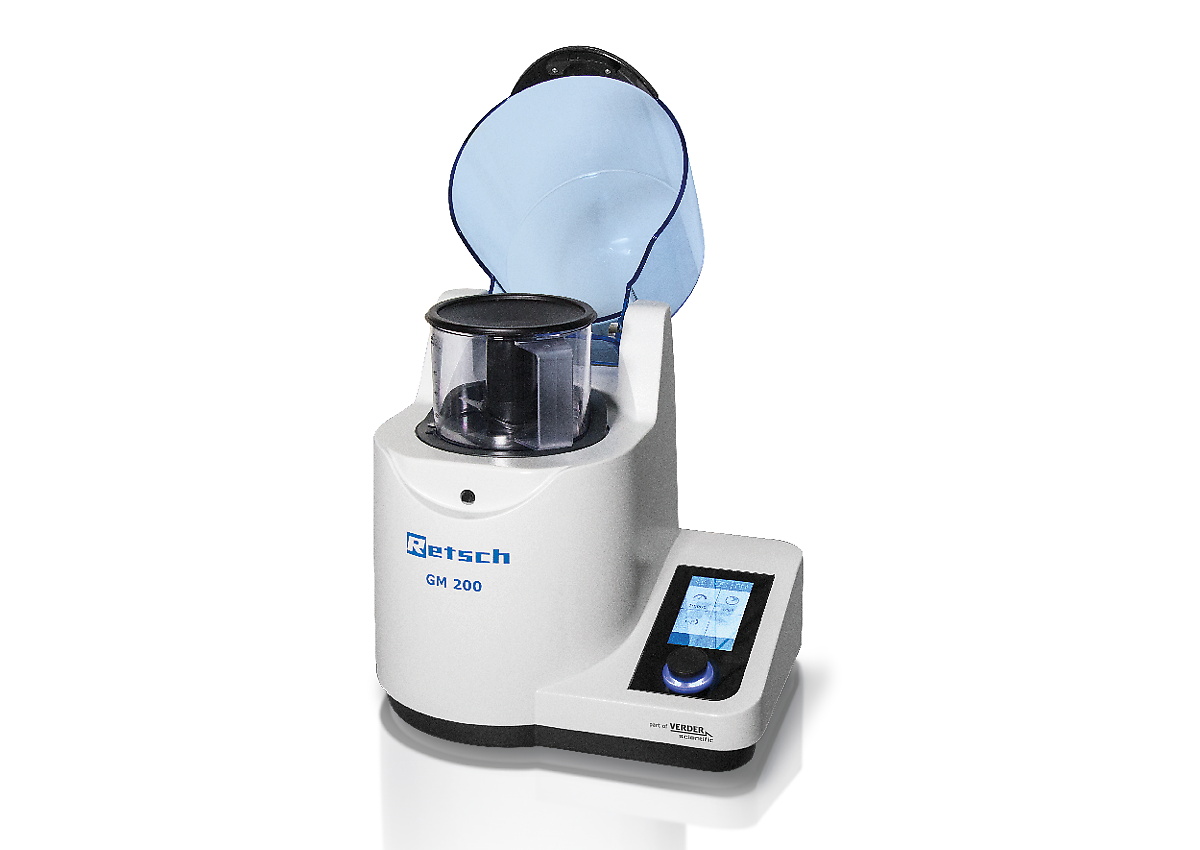

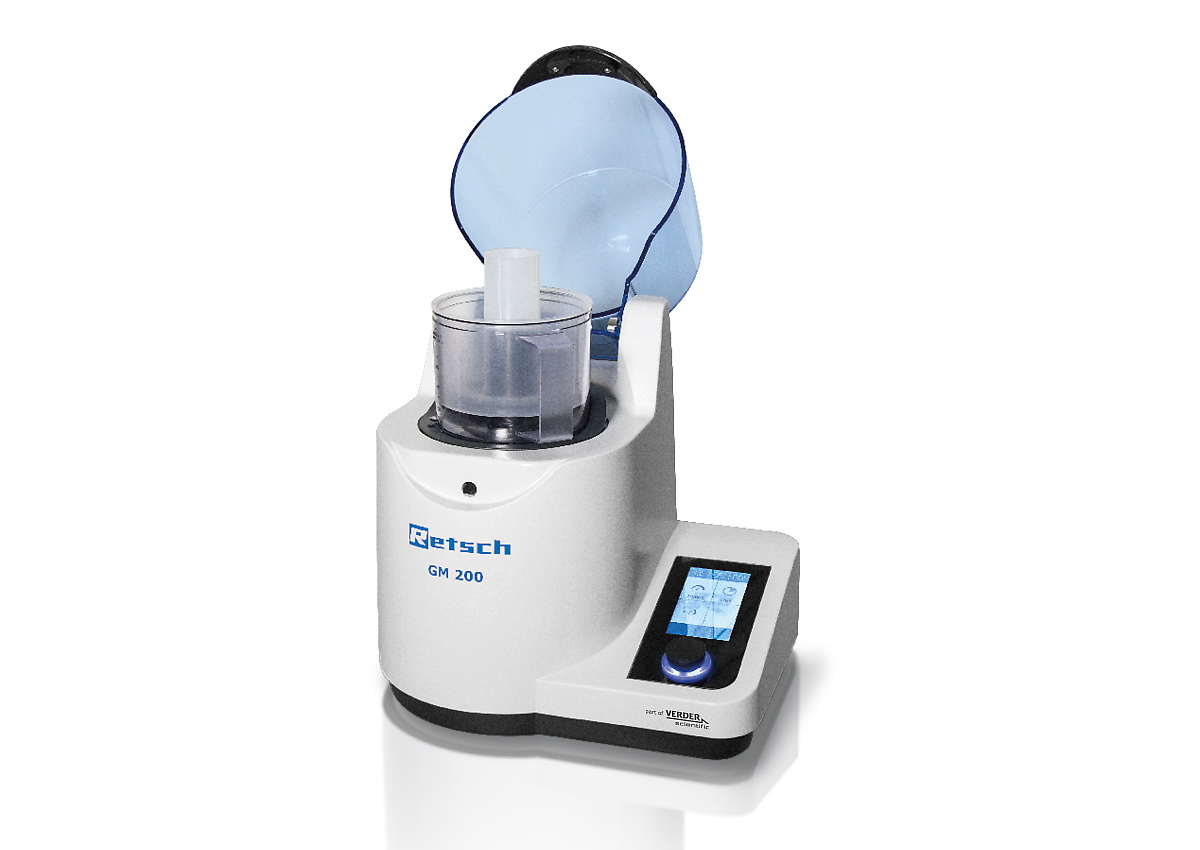

Knife Mill GRINDOMIX GM 200
The new knife mill GRINDOMIX GM 200 is the ideal instrument for grinding and homogenizing foods and feeds. It allows to process sample volumes up to 0.7 liters quickly and reproducibly.
With two sharp, robust blades and a powerful motor, it is ideal for homogenizing substances with a high water, oil or fat content as well as for grinding dry, soft and medium-hard products. A wide selection of lids and containers allows for adaptation of the mill to individual application requirements. The GRINDOMIX GM 200 meets and exceeds all special laboratory and analytical requirements and is a professional device superior to any commercial household mixer.
Príklady aplikácií
šunka, údenina, candy, cereal bars, cereals, coated tablets, cocoa nibs, dietary supplements, dried and fresh fruit, farmaceutické materiály, hlboko mrazené výrobky, kŕmne granule, korenie, lettuce, mäso, olejnaté semená, orechy, rastlinné materiály, ryba, soap, syr, zelenina, ...
Výhody
- efficient size reduction of up to 700 ml feed quantity due to a powerful 900 W motor
- pre- and fine-grinding in one mill: cutting action in regular mode, grinding by impact in reverse mode, pre-grinding in interval mode
- all parts which come into contact with the sample material are autoclavable
- perfect adaptation to application requirements by variable speed from 2.000 to 10.000 min-1 with an increment of 100 min-1
- optional gravitation lid for automatic reduction of the grinding chamber volume
- 3 SOPs can be stored

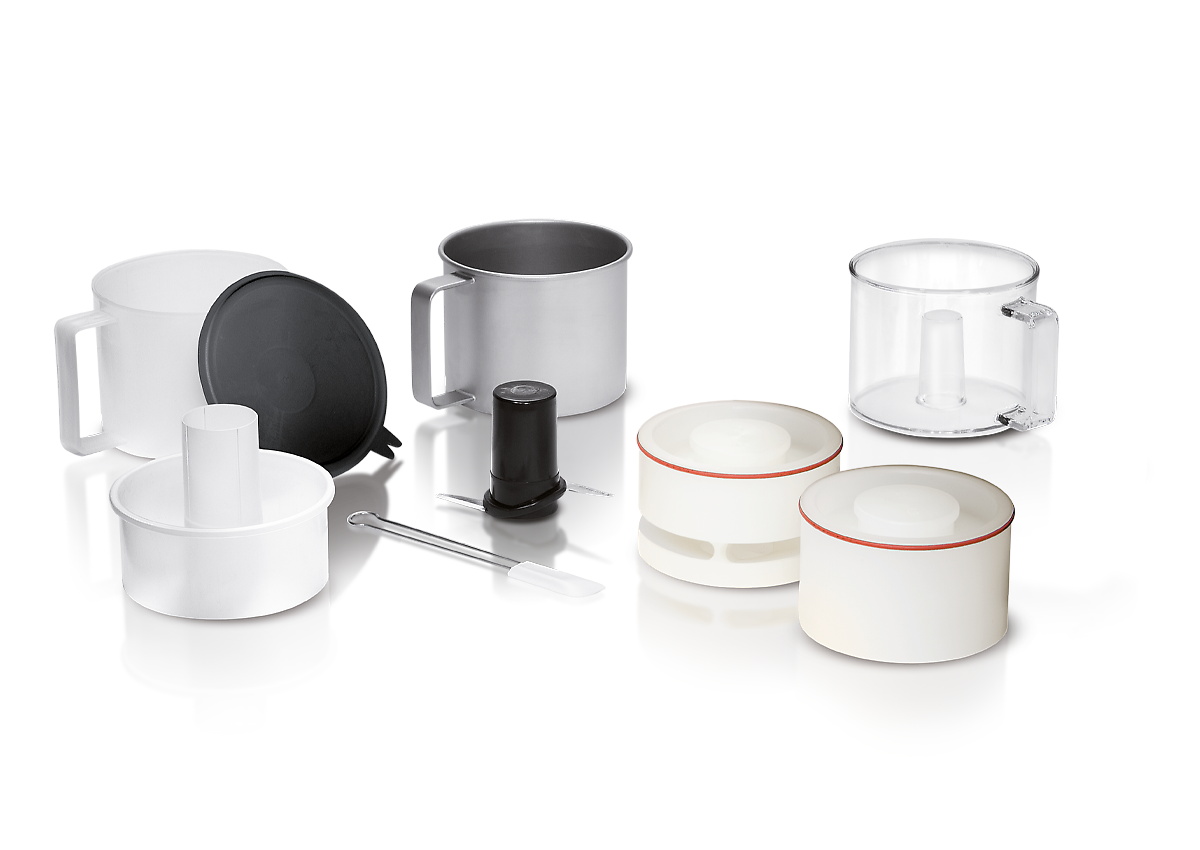

- grinding jar in plastic, stainless steel and glass available
Rysy
| Aplikácia | zmenšovanie veľkosti, homogenizácia a miešanie |
| Oblasť použitia | biológia, medicína / farmaceutika, poľnohospodárstvo, potrava |
| Vstupný materiál | mäkký, stredne tvrdý, elastický, obsahujúce vodu / tuk / olej, suchý, vláknité |
| Princíp redukcie veľkosti zrna | rezný |
| Vstupná veľkosť materiálu * | 40 mm |
| Konečná jemnosť | < 300 µm |
| Veľkosť dávky / vstupné množstvo* | so štandardným vekom 700 ml / / s redukčným vekom 300 ml / / s gravitačným vekom 300 - 600 ml |
| Obsah mlecej komory | so štandardným vekom 1000 ml / / s redukčným vekom 500 ml / / s gravitačným vekom 400 - 800 ml |
| Rýchlosť pri 50 Hz (60 Hz) | digital, 2.000 - 10.000 min-1 |
| Materiál mlecích nástrojov | čepele: nerezová oceľ / titan / / fixácia čepele: PVDF / / obal: autoklávovateľný plast / plast PP / nerezová oceľ / sklo |
| Nastavenie doby mletia | digitálny, 1 s - 3 min |
| Intervalová prevádzka | áno |
| Uložiteľné SOP | 3 |
| Pohon | série-charakteristika motora |
| Sila pohonu | ~ 900 W |
| Elektrické napájanie | rôzne napätie |
| Pripojenie k elektrickej sieti | 1-fázové |
| Kód ochrany | mlecia komora a klávesnica IP 42 |
| Spotreba energie | ~ 900 W |
| Š x V x H zatvorené | 350 x 275 x 392 mm (otvorený: 350 x 410 x 553) |
| Váha netto | ~ 10 kg |
| Normy | CE |
Princíp funkcie

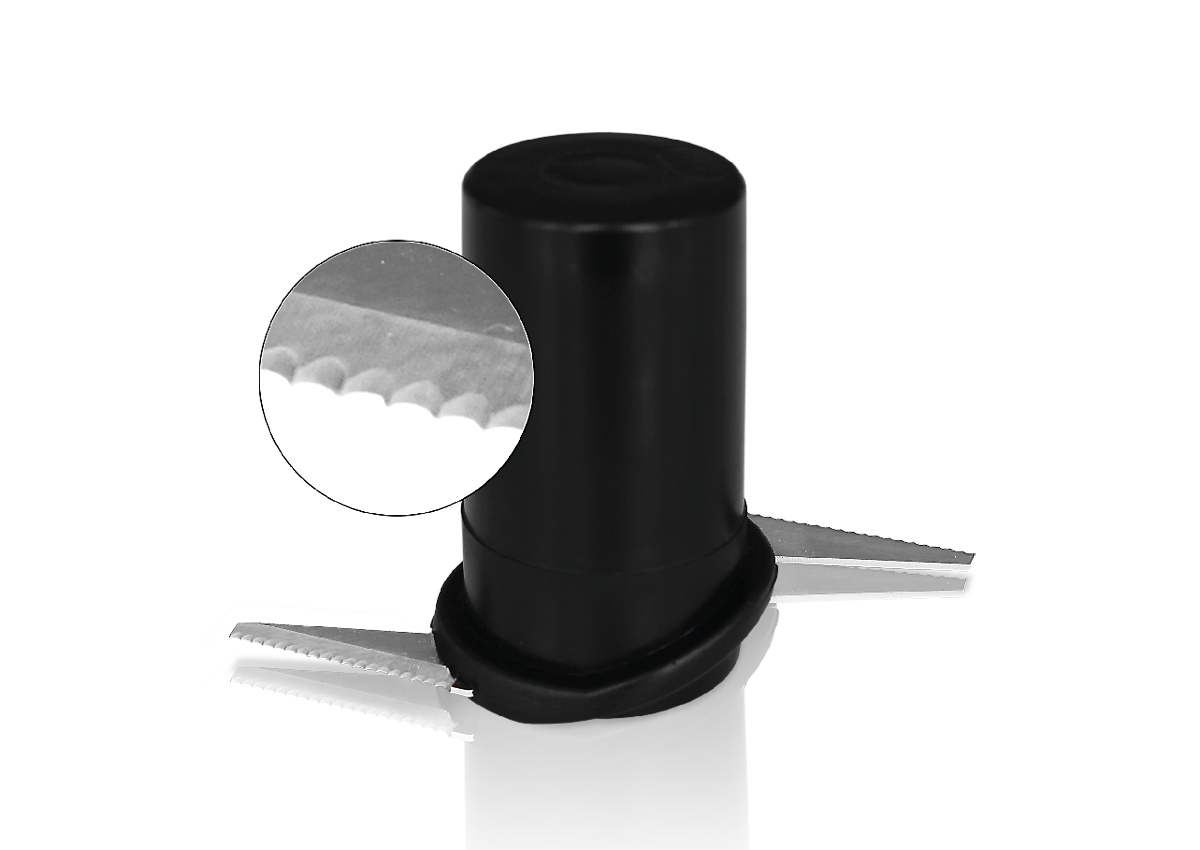

Two sharp, robust blades rotate in the center of the grinding container. Depending on the rotational direction, size reduction is effected with the blunt side (preliminary size reduction) or the sharp side (fine grinding).
The knife is indirectly driven by a powerful motor of 900 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
The knife is indirectly driven by a powerful motor of 900 W. A pre-selectable speed which is maintained electronically ensures optimum adaptation to individual application requirements as well as reproducible grinding results.
