Cutting Mill SM 100

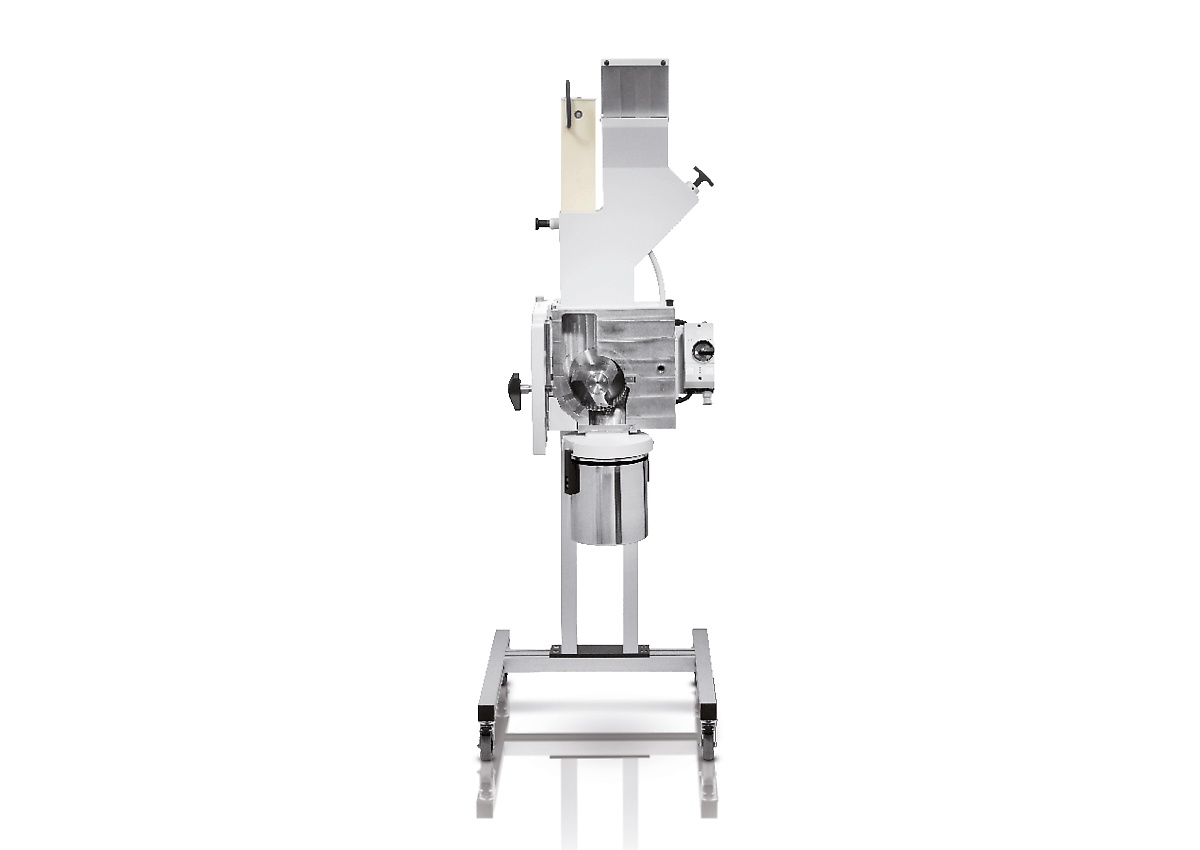

Cutting mills are suitable for the grinding of soft, medium-hard, elastic, fibrous, and heterogeneous mixes of products. The SM 100 is the budget-priced basic model among the RETSCH cutting mills. With its strong 1.5 kW drive and 1,500 rpm rotor speed the mill is particularly suitable for routine applications. Cleaning is made particularly easy. In combination with the wide choice of bottom sieves, hoppers and collecting vessels, the mill can be easily adapted to varying application requirements. The SM 100 can be bench-mounted; alternatively a convenient base frame on wheels is available.
Príklady aplikácií
živice, drevo, drogy, elektronický odpad, guma, kože, korenie, kosti, krmivo pre zver, lepenka, lignit, papier, plasty, potrava, rastlinné materiály, slama, textil, ...
Výhody
- optimum cutting effects
- quick and easy cleaning due to smooth surfaces and push-fit rotor
- for routine applications
- defined final fineness due to bottom sieves with aperture sizes from 0.25 - 20 mm
- wide range of accessories including various hoppers, collection systems, rotors and sieves
- highest safety standards
Rysy
| Aplikácia | zmenšovanie veľkosti strihom |
| Oblasť použitia | biológia, chémia / plasty, environment / recycling, medicína / farmaceutika, poľnohospodárstvo, potrava, strojárstvo / elektronika |
| Vstupný materiál | mäkký, stredne tvrdý, elastický, vláknité |
| Princíp redukcie veľkosti zrna | strih, rez |
| Vstupná veľkosť materiálu * | < 60 x 80 mm |
| Konečná jemnosť | 0.25 - 20 mm |
| Rýchlosť pri 50 Hz (60 Hz) | 1,500 min-1 |
| Obvodová rýchlosť rotora | 9.4 - 11.4 m/s |
| Priemer rotora | 129.5 mm |
| Druhy rotorov | paralelný rotor / 6-ti diskový rotor |
| Typy násypiek | standard, long stock |
| Materiál mlecích nástrojov | nerezová oceľ, oceľ pre mletie bez kontaminácie ťažkými kovmi, karbid volfrámu |
| Rozmery sít | lichobežníkové otvory 0.25 / 0.50 / 0.75 / 1.00 / 1.50 mm / / štvorcové otvory 2.00 / 4.00 / 6.00 / 8.00 / 10.00 / 20.00 mm |
| Zberný systém / objemy | collecting receptacle 5 l / optional: 30 l collecting unit 0.25 / 0.5 l |
| Pohon | Trojfázový motor |
| Sila pohonu | 1,5 kW |
| Elektrické napájanie | different voltages |
| Pripojenie k elektrickej sieti | 3-fázové |
| Kód ochrany | IP 54 |
| Š x V x H zatvorené | 582 x 1675 x 700 mm (with base frame and standard hopper) |
| Váha netto | ~ 73 kg without hopper, rotor and base frame |
| Dokumentácia | Operation & Application Video |
| Normy | CE |
| * v závislosti na vstupnom materiále a nastavení zariadenia / nastavenie |
Princíp funkcie
Size reduction in the Cutting Mill SM 100 takes place by cutting and shearing forces. The sample comes into contact with the rotor, and is comminuted between the blades and the stationary standard cutting bars inserted in the housing.

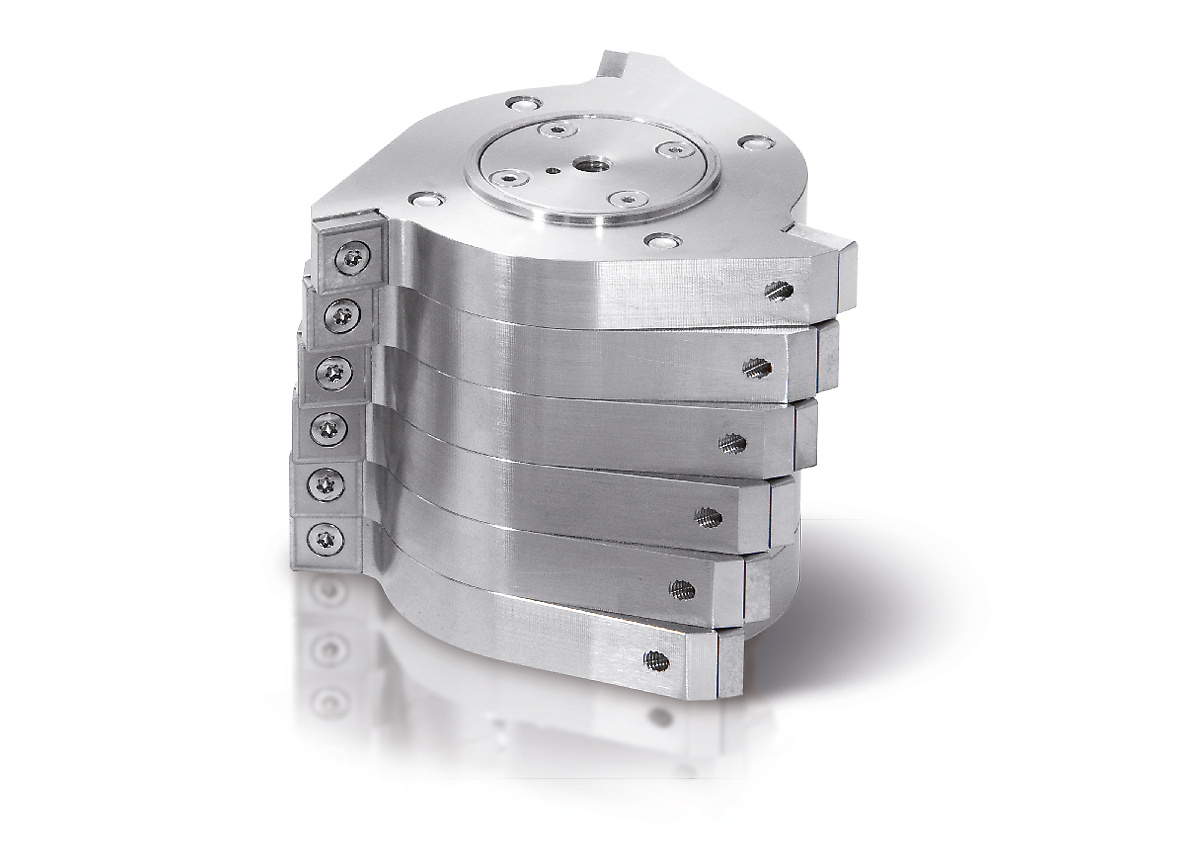

In the 6-disc rotor, spirally arranged reversible hard metal plates operate by cutting in sequence.

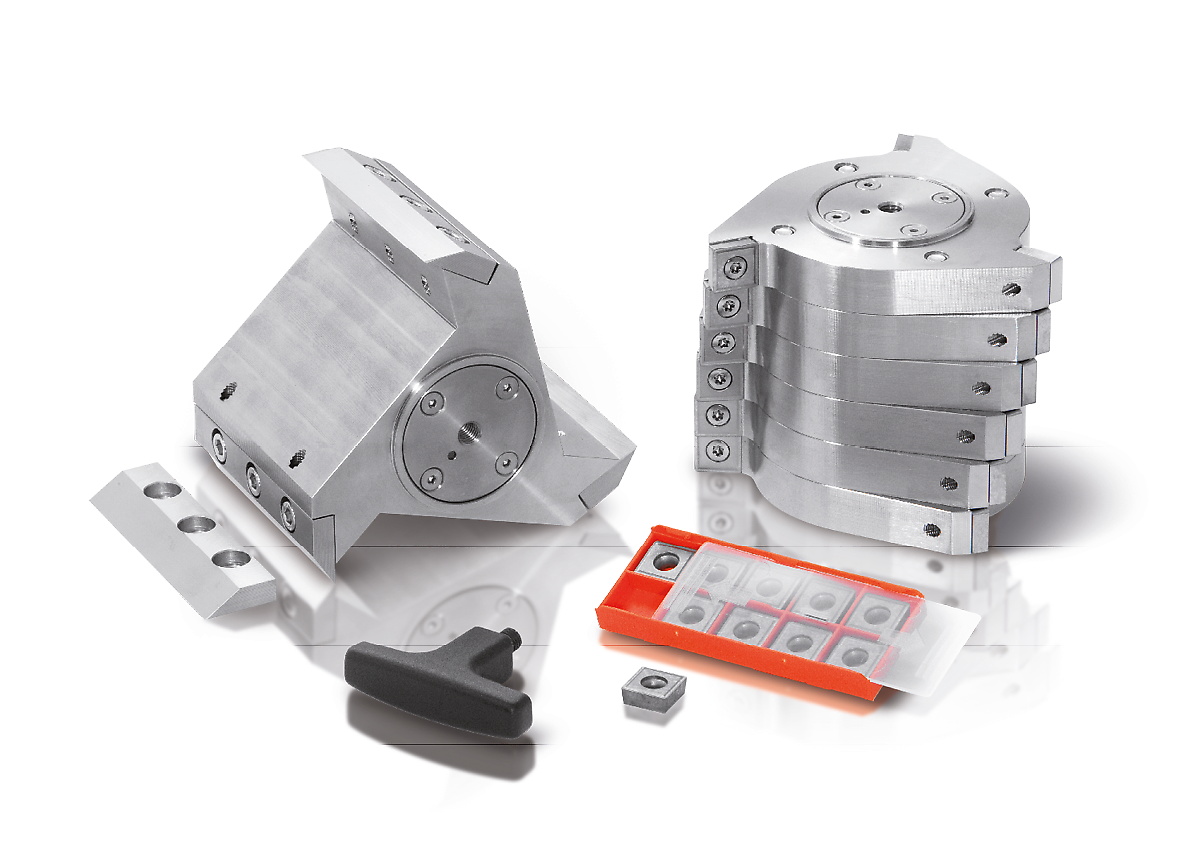

The knives of the parallel section rotor carry out comminution with a powerful cutting action.
The dwelling time of the sample in the chamber is short; as soon as it is small enough to pass through the openings of the bottom sieve it is discharged and collected in the receptacle. The rotor speed of 1.500 min-1 ensures gentle and rapid size reduction.
In the 6-disc rotor, spirally arranged reversible hard metal plates operate by cutting in sequence.
The knives of the parallel section rotor carry out comminution with a powerful cutting action.
The dwelling time of the sample in the chamber is short; as soon as it is small enough to pass through the openings of the bottom sieve it is discharged and collected in the receptacle. The rotor speed of 1.500 min-1 ensures gentle and rapid size reduction.
